Engineering, Packaging, Smoothness, And Other Differences

Displacement and cylinder count are one in all the most important aspects that separate one engine from one other. Everyone knows a 2.0-liter four-cylinder and a 6.2-liter V8 will not be playing the identical game. Nevertheless, the layout of an engine — the way in which its cylinders are arranged contained in the block — often plays a fair greater role in how that engine feels, sounds, and propels the vehicle it lives in.

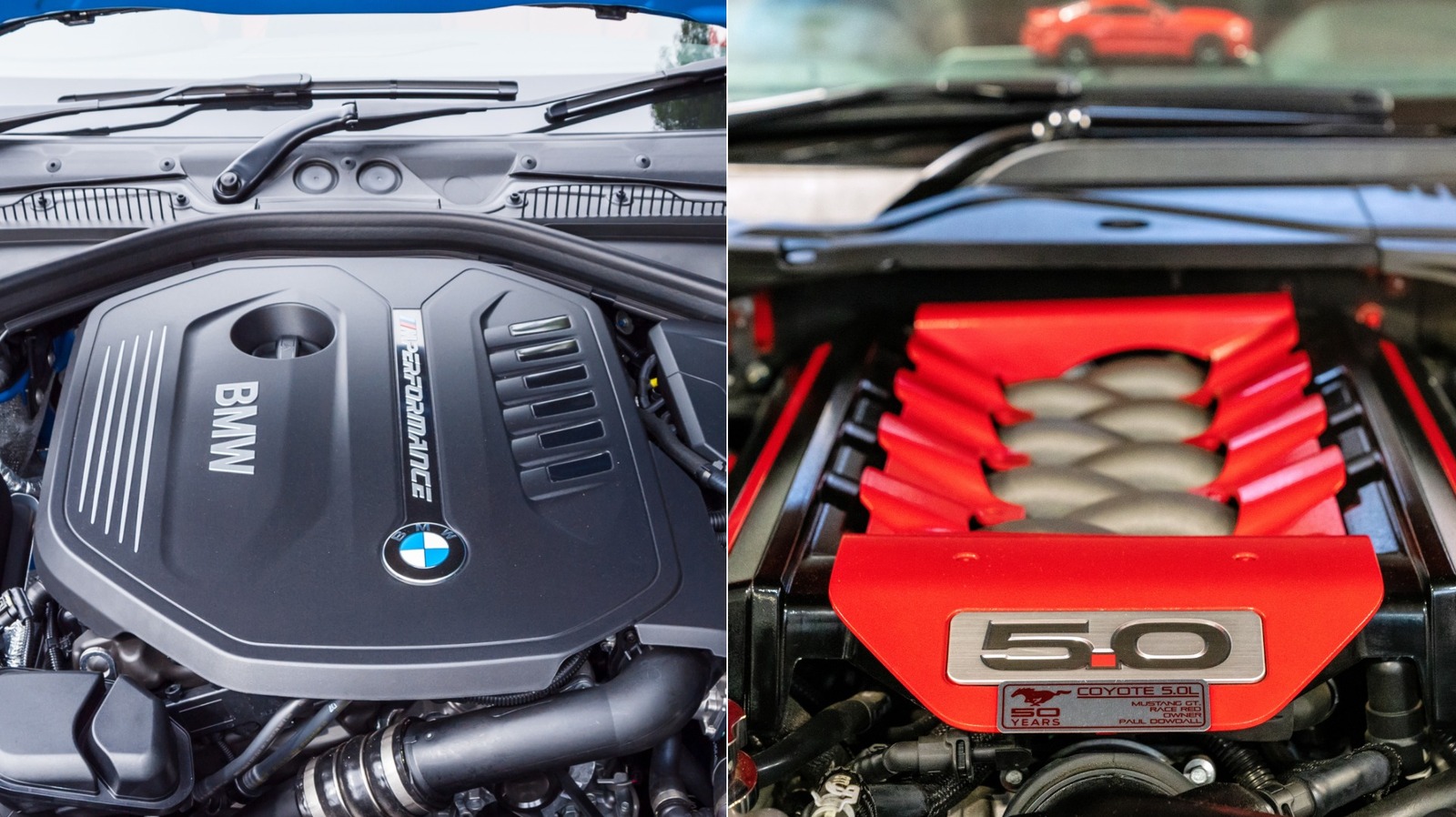

Take BMW’s M division as a case study. In case you are a fan of the brand new M3 or M4, you’re already acquainted with the twin-turbocharged S58 inline-six — probably the greatest six-cylinder engines on the market. Alternatively, when you prefer the M5 or among the larger M SUVs, you already know the V8: larger, angrier, thirstier for fuel, and built for a special type of drama entirely. Although the badge is similar, these two layouts are underpinned by completely different engineering philosophies. Listed below are the differences between an inline and a V engine, and why the layout matters greater than most individuals realize.

At the bottom level, probably the most fundamental difference between an inline and a V engine comes right down to how the cylinders are arranged contained in the block. In an inline engine, all cylinders sit in a single straight row on top of 1 crankshaft. That easy arrangement means one cylinder head, one set of camshafts, and one exhaust manifold. A comparatively easy path from combustion to power delivery. All the pieces is true there in a line, which makes the engine platform easier to design, cheaper to construct, and highly modular.

Alternatively, a V engine takes those self same cylinders and splits them into two separate banks, angled away from one another to form a V shape. That immediately doubles a number of things: There are actually two cylinder heads, two sets of camshafts, two exhaust manifolds, and a more complicated timing arrangement. More parts mean more potential failure points as a consequence of the added complexity. This often leads to higher manufacturing and servicing costs. The V layout also creates balancing challenges that the inline doesn’t have in the identical way. When two banks of cylinders are firing at angles to one another, the rotating and reciprocating forces contained in the engine develop into harder to cancel out — which is why V-shaped engines cannot use just any angle.

Engineers often should add balancing shafts to smooth things out, which adds much more complexity to an already complicated package. Due to all of this, the inline engine wins on engineering simplicity. The V engine trades that simplicity for a more compact footprint, and the flexibility to package more cylinders in a shorter block — and that compactness has real consequences for a way the engine matches contained in the bay.

The inline engine is narrow but long. That length is manageable with 4 cylinders, but because the cylinder count grows, it could actually create problems in relation to packaging. An inline-six is frequently long enough that mounting it transversely may be difficult. This implies it almost at all times has to run longitudinally, which limits its applications.

With a V engine, by folding the cylinders into two banks, engineers cut the engine’s length nearly in half. These packaging aspects allow V engines to pack in additional cylinders and more size. For instance, in comparison with an inline-six, a V6 may be mounted in either direction – longitudinally or transversely. This is very useful for a front-wheel-drive vehicle that features more components within the front.

That compactness, nonetheless, comes with a spatial tradeoff of its own. The V-layout engine is wider, and the valley between its two cylinder banks, while useful for packaging turbos in some applications, also means there may be less room on either side of the engine bay for ancillary components. In other words, this will make it harder to vary the spark plugs or the fuel injectors.

The inline engine, being narrow, leaves more usable space on either side of the block, which is one reason turbocharged inline engines are inclined to be easier to work on. Inline engines are also highly modular — automakers can often use the identical block architecture and easily subtract or forged more cylinders, allowing the engines to make use of most of the same parts, relatively than engineering a wholly recent engine from scratch. That is one in all the important thing reasons more automakers are actually making recent inline-six engines.

The smoothness of an engine comes right down to how well it manages the forces generated by pistons moving up and down during combustion. When those forces cancel cleanly, the engine runs without vibration. For instance, the inline-six is famously balanced. Initially, it has a natural advantage over a V6 because all six cylinders sit in a single row, so the pistons may be paired symmetrically. Specifically, cylinders one and 6, two and five, and three and 4 all move together in pairs. The upward force of 1 piston is directly cancelled by the downward force of its counterpart. Second, a normal inline-six fires every 120 degrees of crankshaft rotation, producing evenly spaced power pulses. It’s inherently balanced while not having any extra hardware.

When a V6, since it is largely two inline three-cylinders joined together, side-to-side vibrations should be accounted for. Managing all of this requires counterweights, specific bank angles, and, in lots of cases, additional engine balancing shafts. The V8 fares higher than a V6 since it is usually angled at 90 degrees and has a fair variety of cylinders on either side. That said, it still relies on engineering intervention relatively than natural geometry. The V12 is the exception — it’s essentially two six-cylinder engines joined together, which is why it rivals the straight-six in refinement. Nevertheless, that smoothness comes at the price of immense size and more parts.

The inline-six has a definite sonic character rooted in its mechanical layout. Because all six exhaust ports sit on the identical side of the engine, the exhaust exits in an uninterrupted, smooth, and evenly spaced sequence. The result’s a linear, almost turbine-like sound that builds with the revs — the type of thing BMW has spent a long time engineering its M cars around and Nissan immortalized with the RB26.

The V engine sounds different for a similar reason it runs in a different way. A cross-plane V8 fires in a sequence of left, right, left, left, right, left, right, right — and that irregularity is precisely what creates the signature burble that has develop into probably the most recognizable sounds in automotive culture. That said, not all V8s sound the identical — the rationale why flat-plane crank V8 engines sound so distinctive is that their perfectly alternating firing order makes them scream relatively than burble.

The V6 sits between these two extremes. Its two banks of three cylinders still create an inherently irregular pulse pattern, giving it a personality that’s distinctly different from each the inline-six and the V8. Many V6 engines have a status for not sounding very joyful, but Ferrari’s 296 GTB proves what the layout is able to when the bank angle and firing order are optimized. Its 120-degree flat-plane V6 produces a sound close enough to a V12 that Ferrari engineers reportedly call it a “piccolo V12” internally. All of which means that, with the correct approach and engineering wizardry, you possibly can overcome the inherent characteristics of a particular engine layout to a level.
