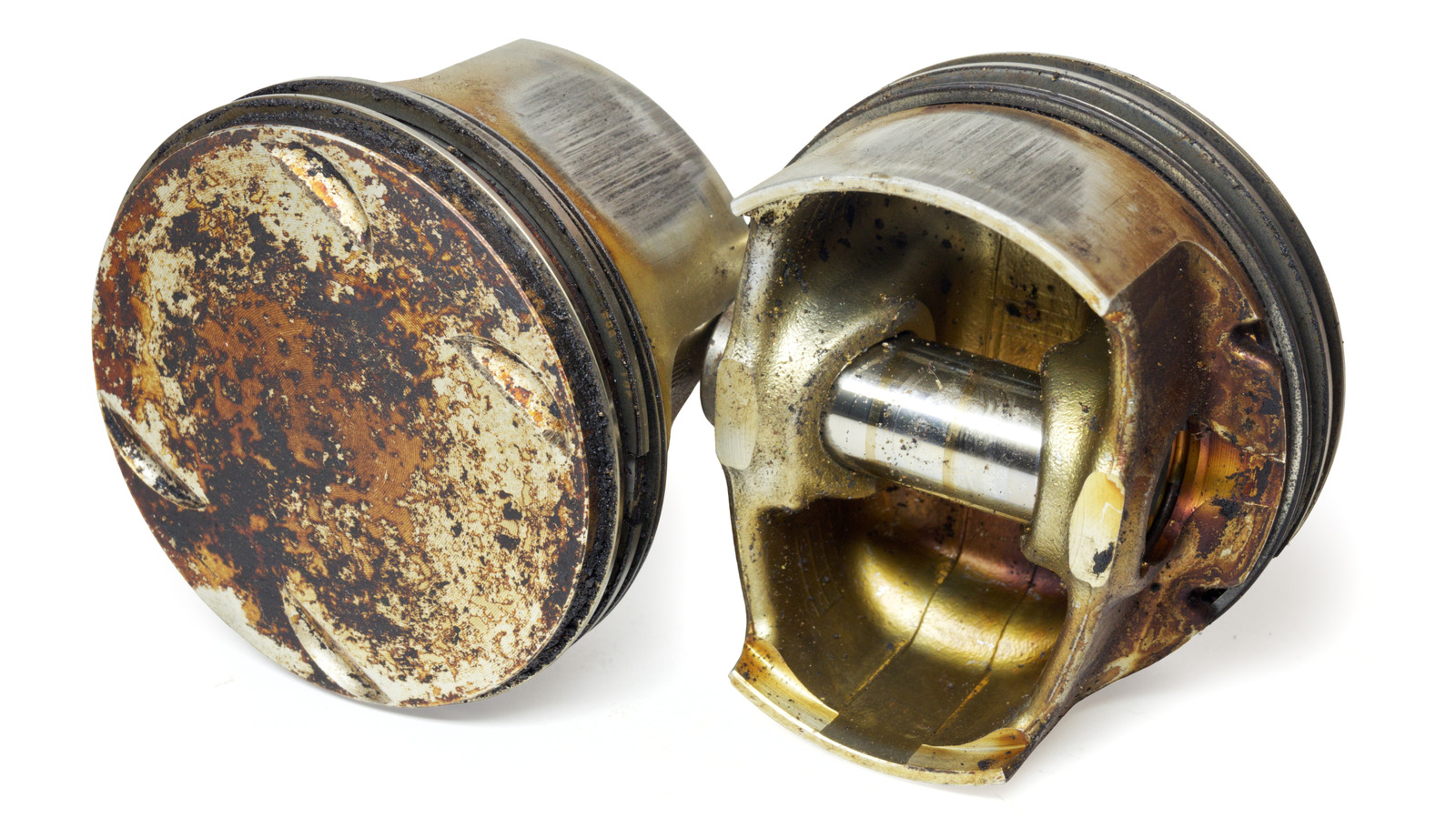

It is simple to assume a piston skirt is just extra material that is left to act to guide the piston because it moves through the bore. Nevertheless it actually performs a rather more essential task, which is to administer forces that, if not taken care of, could have antagonistic effects on the ring seal and stability. The combustion pressure and rod angle mix to always push a piston sideways because it moves through the four-stroke cycle.
Throughout the power stroke specifically, the piston is pushed into the cylinder wall on the most important thrust side by gas pressure and mechanical leverage. That is when the load is at its highest degree. Within the absence of a skirt, the one remaining contact point can be the ring pack, and the piston would rock back and forth. This could cause piston slap, which it is best to definitely be worrying about, and in addition cause the seal to interrupt down in almost no time.
What a skirt does is it distributes the side load over a bigger surface area, and creates two contact zones that keep the piston stable because it moves contained in the cylinder. Just as essential, the skirt must do all of this while creating as little friction as possible.
Why skirts aren’t round and never were
Although a piston skirt appears cylindrical, it’s deliberately machined with ovality and a barrel profile. What these shapes do is compensate for the uneven expansion of the piston (which can be why piston ring endgaps matter greater than you’re thinking that). The lower skirt doesn’t heat up as much because the crown and ring belt, where a lot of the combustion heat accumulates. Concurrently, some parts of the piston are stiffened by the pin bosses and internal ribs, while others stay more flexible. The piston deforms once the crown is pushed down by the gas pressure, and the skirt is splayed outward in a non-uniform manner.
To handle vertical behaviour, barrel contouring is used. A degree is calculated below the ring pack where the skirt is kept largest, and there may be a gradual taper each above and below this point. What this does is define a controlled contact patch to stabilize the piston, while keeping a lot of the skirt away from the bore. Horizontal loading, however, is taken care of by the ovality. To be sure the fabric is concentrated where the side loads are highest, the skirt is kept wider across the thrust faces and narrower along the pin axis.
How modern skirt designs reduce friction without losing stability
Early pistons relied on full round skirts to survive heavy loading, however the added mass and friction limited engine speed and efficiency. As engines evolved toward higher rpm and shorter strokes, skirt designs modified with them. Slipper skirts removed unnecessary material while retaining enough surface area to regulate thrust loads. This reduced reciprocating weight and allowed pistons to clear crank counterweights in compact engine designs.
Further gains got here from refining how the remaining skirt material was used. Asymmetrical skirts recognize that the most important thrust side carries way more load than the minor side. By keeping a sturdy, rigorously shaped skirt on the most important thrust face and reducing material on the minor side, designers cut friction and weight without sacrificing stability. Balance is preserved through pin offset and lighter wrist pins, not by symmetry alone. Coatings add one other layer of control. Skirt coatings are supposed to protect against cold starts and temporary contact events, which could, in turn, cause cylinder wall scoring.
