“Race cars are cool, but street cars are where it’s at.”
Those were the words Mike Catell said just before we turned onto the highway, and he arrange to indicate me exactly why cars that will be driven on the road and the track are his favourite. Hanging out in second gear, allowing the exhaust to make all the precise popping noises, he waited for the automobile in front to develop into a speck in the space before pushing the thin pedal to the carpet.
With a slight squat and a surprising lack of wheel spin, the automobile happily and quickly went from cruising speed to overtaking velocity in very short order.
A number of clicks of the signal lever later, and we were within the fast lane, where Mike got off the throttle, and we cruised quite comfortably to the photoshoot location. Windows down, radio at half volume, and leather seats semi-reclined, I could see why Mike loves this automobile a lot. It could transform from rowdy to civil and back again on the drop of a gear.
“I drive it as much as I can; it’s one among my favourite cars to take out,” he says. Considering Mike’s current day by day fleet consists of a 1.8T-powered BMW E30 and a Cummins-swapped Chevy C10, amongst other oddities, that’s saying lots.

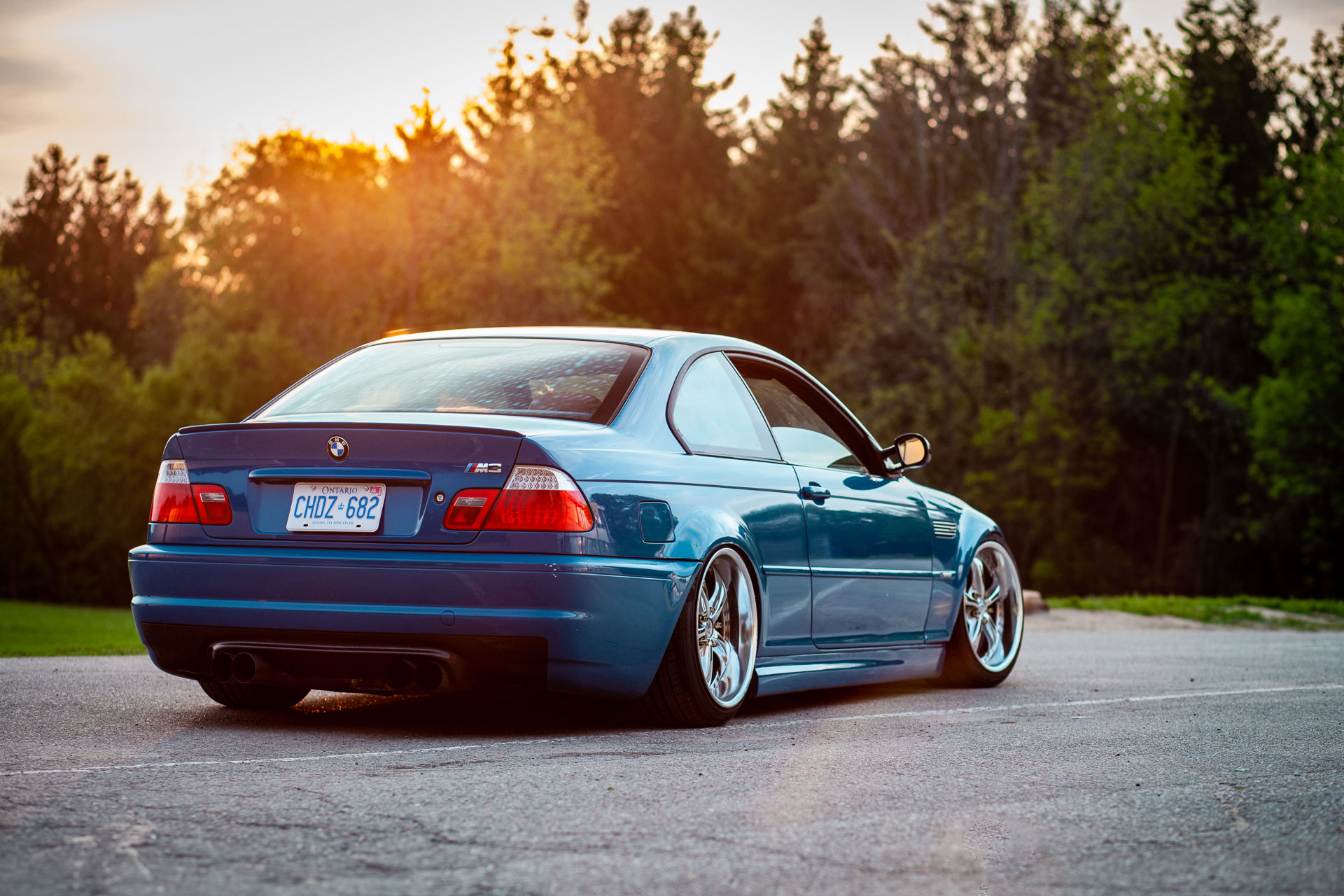

Within the BMW world, Laguna Seca Blue M3s are a little bit of a sacred thing. They’re blue in some light, aqua in others, and bordering on teal when the sun hits them good; it’s a color that’s nearly unimaginable to hate.
The color and generously proportioned rear end have earned the M3 a nickname of ‘The Blue Beluga’.
Mike’s E46 proved to be a fan favourite on the street, with a couple of thumbs up, difficult revs, and honks as we passed by.
The paint, wheels, and stance prevent the automobile from being classified as a sleeper, but not one of the exuberant onlookers probably expected it to be far more than an M3 with wheels, drop, and an exhaust.
Self Motivated
At low RPMs, this automobile is pretty good at holding its secrets near its chest. But I’m sure with the photo above, every one among you is already hip to a part of the hidden weaponry.
Should you assumed there’s forced induction in the combo, you’d be right. Obviously, the massive intercooler gives that much away, but together with not being naturally aspirated, the E46 additionally it is not powered by BMW.
BMW purists, be cool – when Mike got this automobile, the factory S54 was long gone. Slightly than find one other one or drop in an LS, Mike replaced the unique six with one he was already incredibly conversant in: the Toyota 1JZ-GTE VVTi.
Mike and the 1JZ have history, and it’s a motor that’s proven reliable under the conditions he expects a automobile to perform. That’s, sideways with a cloud of tire smoke behind.
Mike’s 1JZ originally got here from a JZX100 Chaser, but before this automobile, it powered his previous standard-trim E46. It was in that automobile that he discovered what worked and what didn’t with this swap.
Once that automobile was fit for pasture and his swap mounts were thoroughly tested, this chassis was acquired as a rolling shell.
Arriving pretty much in a shambles, Mike got down to get the M3 roadworthy over the course of a couple of months. No time to waste, efforts were focused under the hood first.
The 1JZ isn’t overbuilt, however it is specced to be reliable. CP forged pistons have been installed together with ARP head and primary studs, and bolted to a top-mount manifold is a GT35 turbo paired with a 46mm wastegate. All of the turbo, wastegate and coolant hard lines were plumbed up using piping and fittings from local supplier Vibrant Performance.
Managed via a Link standalone ECU, the BMW puts down 340hp at 15psi due to a BR Tuning base tune. They’re not crazy numbers, but this automobile wasn’t built for posturing or dyno pulls – it was built for reliability and skids.
Lots of skids.
As someone who construct exhaust systems day in and time out at his shop, GT Custom Exhaust Oshawa, Mike couldn’t let the automobile scream through a basic set of blast pipes.
At first glance, tucked as tightly as possible to a carbon fiber CSL-style diffuser, the exhaust looks prefer it could possibly be a mass-produced item, however it’s removed from.
Coming off the down pipe is a custom exhaust that Mike put together using stainless-steel and titanium components, also from Vibrant.
‘Functional art’ is the perfect approach to describe the rear section Mike has built. The pie-cuts, the welds, the symmetry – it’s all an example of the work Mike is able to when motivated and given complete creative freedom.
It’s Mike’s passion for cars personified inside a single piece that almost all people won’t ever see. Details like these are what separate an amazing automobile from just one other automobile with a motor swap.
Not content with just the exhaust, the entire coolers have been custom-built or modified too. Mike is an enormous proponent of ‘weld daily’, and it rattling well shows.
Style Cat
With regards to constructing a drift automobile, each Mike and I agree that style could be very vital.
On the earth of drift, there are several different approaches currently popular. You’ve got angle kit-equipped billboards sliding through FD, livery-draped cars running tandems at Final Bout, and near-death missile cars all over the place in between.
Then you definitely’ve got cars like Mike’s; clean, easy and capable of slot in anywhere.
Within the looks department, Mike has actually done little or no. BMW did an amazing job with the E46 and the stock fenders are wide enough to suit some properly sized wheels – Work VS-KFSs on this case – and matching rubber.
So, stock fenders remain and up front carbon fibre splitters hang on to the bumper for dear life. Tying the simplicity is a healthy ride height reduction.
Normally, on a automobile this low, especially an E46, one would expect to see quite a little bit of camber in a photograph just like the one above. Traditionally, E46s have the spring and damper mounted individually from one another on the rear trailing arm, and even at factory height, the rear spring is sort of short. Springs needed to bring the automobile all the way down to this level are even shorter still.
Along with his former E46, Mike realized that his desire to be low didn’t exactly jive with the factory suspension. Raising the automobile would have been a approach to fix this, but where’s the fun in that?
Along with having no motor when it arrived, this automobile also had many of the rear floor ripped out of it. Rust is an unlucky problem that plagues mainly every E46 in Ontario.
While fixing and reinforcing the ground, Mike also beefed up the upper shock mounts. Fortifying the towers was essential in order that the automobile could possibly be converted to a real coilover setup.
The rear coilovers were provided by Parts Shop MAX, a supplier that’s been helping Mike construct low and functional cars for years. Above the coilovers is a everlasting Catell-built tie bar that runs from one strut tower to the opposite.
Recent PBM upper and lower control arms help keep the wheels inside an affordable camber spec, allowing the automobile to grip up when Mike needs it to, be it in a straight line or sideways. Matching Parts Shop MAX coilovers will be found up front, pulling the automobile all the way down to only a hair lower than the rear.
An argument could possibly be made that each one of the above is a heck of a variety of work simply to get low, but when the automobile looks this good, I’d say it’s time well spent.
Creatures Need To Be Comfortable
Power? Check. Sound? Check. Looks? Check. The last piece of this automobile to deal with was the cockpit.
Here’s an area where Mike actually didn’t do much in any respect. While they’re not essentially the most supportive things on the earth, Mike couldn’t bear taking the peanut butter-colored seats out of the automobile – a choice this writer fully supports. BMW nailed this color combination and breaking it up for something like a black fixed-back bucket can be a tragedy.
Mike has fitted a deep-dish steering wheel and durable shift knob, but you’ll notice that the e-brake handle is stock. There’s no hydraulic unit here; Mike prefers to make use of weight transfer together with well-timed clutch kicks to get his automobile sideways.
The factory gauge cluster stays, and from the door sill up, things look fairly factory issue.
Door sill down, to keep watch over what the Toyota motor is admittedly as much as, Mike has installed AEM, Defi and GReddy monitoring just forward of the shifter.
Looks, power, comfort, this automobile has every thing you would ask for from a vehicle built for the road and the track. Oh, and it sounds rattling good besides.
You didn’t think that after so many key strokes talking concerning the sound of the automobile, I used to be going to let this feature conclude without video, did you?
