Here’s How Dyno Tests Actually Work

The necessity to measure mechanical power is older than the automotive itself. Back within the 18th century, mine owners measured how hard a horse could pull. Throughout the Industrial Revolution, engineers expanded on this idea, coming up with ways to exactly quantify the output of steam engines and other industrial machinery. Fast-forward to the fashionable era, and the challenge is not much different.

A automotive enthusiast bolts on a brand new turbo, remaps the engine control unit, and installs a freer-flowing exhaust — but how do they really know if any of it worked? Relating to a automotive’s real performance, gut feel and guesswork simply don’t cut it. That is where the dyno is available in. Short for dynamometer, it is a machine that applies a controlled load to a automotive’s drivetrain and measures the engine’s torque and rpm response.

In other words, it translates raw mechanical force into torque that gets calculated into horsepower. Those measurements are intended to mechanically assess performance, efficiency, and sturdiness in a way gut feel never could. To get you within the mood, take heed to the wail of this homemade V12 on a dyno. Now let’s dive into how dynos work, what the testing process involves, and where their limits lie.

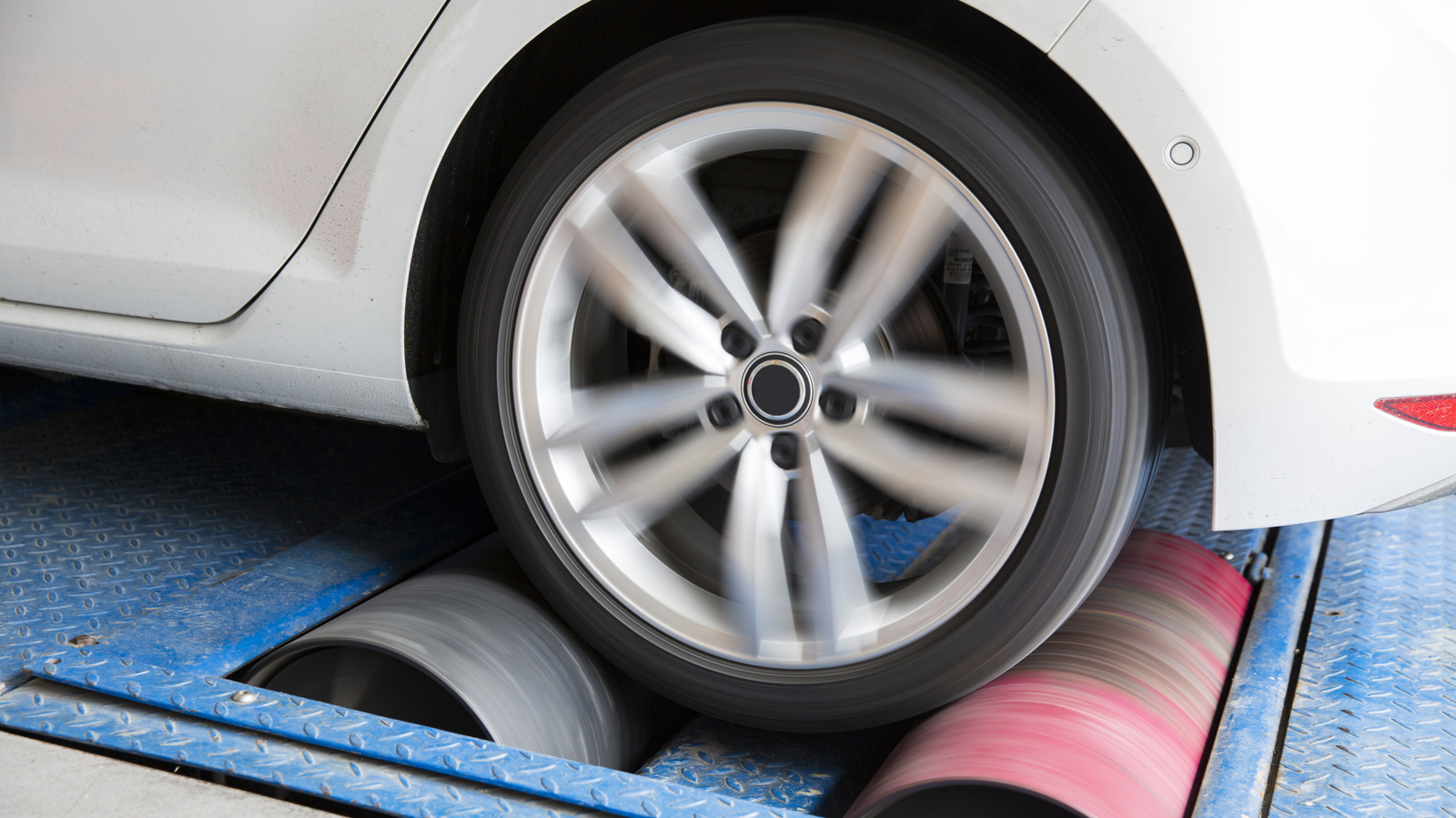

So what does a dyno test appear to be in the actual world? Essentially the most common type utilized in shops is the chassis dynamometer, or “rolling road” dyno. It is so effective since it simulates real driving conditions in a controlled manner. It measures a automotive’s output via two or 4 large rollers spun by the automotive’s wheels. The automotive is strapped onto the dyno and supported by fans so as to not overheat.

These rollers use sensors to measure parameters including how hard the wheels are spinning (torque) and how briskly (rpm). This data flows into the machine’s brain, where horsepower gets calculated. The advantage of this setup is that it captures wheel horsepower, which differs from metric and imperial horsepower figures measured on the crank, with drivetrain losses already accounted for. A conventional engine dyno measures power on the crankshaft, which implies it doesn’t account for the ability losses that occur as that power is transmitted to the wheels.

During a typical run, technicians typically run the automotive as much as third or fourth gear, accelerating from low rpm to the highest of the rev band, with the dyno collecting data the complete time. Beyond horsepower and torque, modern systems can concurrently track air-fuel ratio, rpm behavior, and — on forced-induction cars — boost pressure curves. Sensors resembling strain gauges and torque transducers convert all of this activity into electrical signals the software then turns into readable graphs.

Dyno results are more nuanced than most individuals realize, because many variables affect them. (That is why your automotive’s EPA mileage rating doesn’t all the time match reality.) One of the crucial missed aspects is sweep time: how long the engine takes to speed up from low to high rpm under load. If the sweep time is shorter, the engine produces power more aggressively, which may inflate the numbers. Conversely, an extended sweep tends to reflect how the engine behaves in the actual world, though it can likely yield a lower peak figure.

Then there’s the correction factor, which standardizes results based on conditions like temperature, humidity, and air pressure on the day of testing. Operators who control for these inputs, or who apply “graph smoothing” to scrub up the information curves, could make a final graph look much more optimistic than it actually is. On top of that, aspects like dyno brand, season of the yr, and even the condition of the tires all push the numbers around independently of what the engine is doing. The issue is further compounded when you run your automotive on a distinct dyno with different specifications and operators.

Because of this, many tuners treat the dyno primarily as a comparison tool — the raw number matters lower than the difference between the before and after runs. That change is where the actual truth lives. The measurements you get are almost all the time relative, and the one thing they will inform you for certain is whether or not you’re making more power than before.
