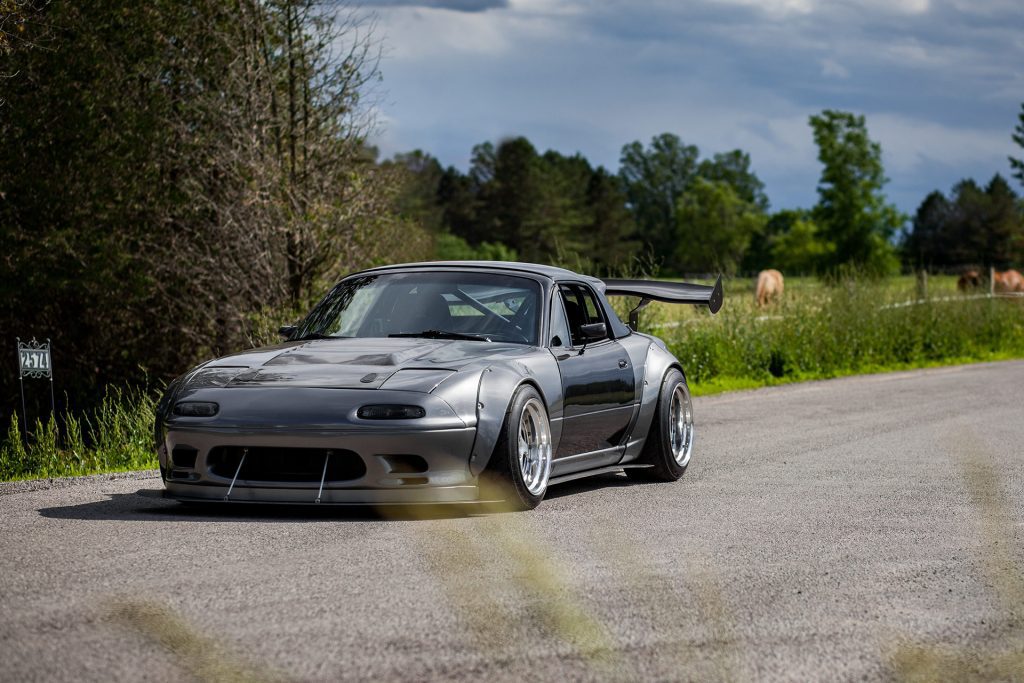

On the sight of flares, CCW wheels and a giant wing, a few of you’re likely already in your way right down to the comment box to bemoan about lack of originality. But stop, I implore you. Move your cursor away from that close button too. Myself, and certain the builder/owner of this Miata will admit that yes, at face value this automobile starts down a well travelled road. Nonetheless, just a couple of steps toward the tip goal it diverges from the trail of many and begins down the trail of few. A lot in order that judging this automobile just by the sum of its immediately visible modifications can be ludicrous.
This automobile is, in my view a minimum of, the most effective modified Miatas ever created.
While I could string together a couple of more introductory words as to precisely why, it’s really easier to chop to the chase. If, taking a look at the engine bay above, you are usually not impressed by the aesthetics, craftsmanship, or function, then sir or madam I challenge your enthusiasm for cars at large.
Attached to what is sort of frankly a murals masquerading as an engine bay, is the 2 12 months culmination of a straightforward idea. Brad Ruiter wanted a automobile he could launch down the quarter mile, run time attack in, drift with, and park at a show all said and done. Finally, he also wanted the automobile to be able to driving itself to and from each event as well. The icing on the cake is he desired to do all of it in the identical day.
No, Brad doesn’t live in fantasyland, and so far as I can tell his head isn’t within the clouds anymore than yours or mine. He simply shrugs on the notion that you could’t have all of it in the identical automobile.
The son of an achieved hot rod builder – Brad’s father Richard took a run on the coveted Ridler award with the ‘Xvette’ a 1955 Chevy he in-built his garage – Brad sought to bring the new rod level of detail he had been exposed to his entire life to the Miata platform.
Coming from a hot rod upbringing the choice to go V8 was a simple one, especially after Brad previously modified his automobile with the everyday go-fast, turn-quick bits Miata owners often do, and located it lackluster. For a automobile touted the reply to everyone’s track needs it wasn’t quite the correct answer for Brad.
The alternative to go V8 was quickly followed by the alternative not to make use of a swap kit or construct off the prevailing metal within the engine bay. Strapped to a frame table and arrange on a jig to retain the mandatory dimensions, every thing forward of the firewall was removed before the firewall itself was also cut out and solid aside.
Left with a blank canvas, Brad built recent frame rails out of three×4-inch box steel before putting the tube bender to task to form the tops of the brand new strut towers. A 6-point roll cage then snakes through the firewall to hook up with the brand new frame rails.
From there the framework was all blended together seamlessly with sheet metal from the intake and radiator shroud back to the firewall and in every single place in between. Brad even went to this point as hiding all the fender fasteners.
He estimates that there are roughly 350 hours into the engine bay alone, and that point definitely show in the ultimate product. When was the last time you saw a painted firewall reflect an engine so clearly?
Chapter Two: Putting The Power Down
The painted and tidied LS3 between the custom frame rails is currently there for the second time. Its first appearance was cut short after the Stack cluster read the dreaded words “low oil pressure” while the automobile was in operation. This happened shortly after Brad connected a couple of corners on the certainly one of the Miata’s first drift outings.
A setback obviously, the motor was pulled, rebuilt, and reinstalled. Throughout the rebuild the underside end was balanced, the factory pistons swapped with Mahle units, a Howard cam installed, and the heads ported, decked, and polished. ARP hardware holds all of it together and the motor now exhales through long-tube headers Brad designed and built himself.
An estimated 500 horsepower sings through a hand-built aluminum exhaust, and it’s transferred through a T56 transmission with ZR1 clutch. An aluminum Ford 8.8 rear with Detroit Trutrac posi and three:27 gears puts the ability to the bottom.
Overkill for a automobile as light as a Miata? Perhaps, but Brad was shooting for the perfect not ‘pretty good’.
In an effort to make as much traction as possible (read: there’s still plenty of tire smoke when Brad’s foot is in it), Brad put together a fairly aggressive aero package for the automobile. Up front is a big custom splitter and within the rear there’s an equally large and equally custom rear diffuser. Each are tied into the 1-inch aluminum tube structure that sits behind a Racing Beat front bumper and factory rear bumper.
Final Chapter: It’s Under The Paint That Counts
Prior to painting the automobile Brad spent a major period of time making the Tuckin 99 N2 flares fit the automobile as if factory. Most of that work goes entirely unseen hidden behind the flares. As a substitute of simply folding the cut metal over itself and welding it shut, Brad tubbed the inner fender to fulfill the flare.
It’s this level of detail, fit, and finish that separates Brad’s Miata from the infinite other flared vehicles running around tracks and sitting hard-parked at events across the globe. Under the flares are CCW LM5T wheels that clock in with 16×10-inch and 16×11-inch measurements. The polished wheels are shod in 245/45R16 Toyo R888 rubber front and rear. The suspension consists of Megan coilovers, custom tubular control arms (again made by Brad) and Kaiser Automation drop spindles.
Wilwood 6-piston calipers sit up front with 4-piston units within the rear, and pressure is applied via a Wilwood triple master pedal setup. The reservoirs for this unit are easily accessible within the passenger compartment via a hole within the dashboard.
The complete automobile, save for the aforementioned doors, hood, trunk and hard top has been sprayed Porsche Meteor Grey. The ‘entire automobile’ does mean all the automobile on this case, because it was done on a rotisserie. With the underside painted a factory finish on the components wouldn’t do so that they were powder-coated mirror black by local outfit Stripping Technologies.
The inside is pretty spartan, yet detailed all the identical. The dash is custom and climate control is finished via a Vintage Air heater, a unit commonly used amongst the new rod community. A pair of Sparco Sprint seats keep the occupants contained and a Grip Royal wheel handles driver inputs.
From a show aspect the automobile has understandably done extremely well. In 2015 the Miata had its accomplished debut within the front hall of an Ontario show called Motorama. This is critical since the front hall will likely be reserved just for classics and hot rods, not imports.
There the Miata took home a couple of bits of hardware including ‘Best Engineered Street Machine’ top honours. I don’t mention this to boast or brag on Brad’s behalf, but to cement the undeniable fact that he did construct a automobile to such a high standard that is actually appreciated by every level of enthusiast.
At this point the automobile is strictly where Brad wants it and no further extensive modifications are planned. He’s even teased at the concept of selling it in order that he can act on a few of his other construct ideas. He didn’t disclose what those were, but hopefully he invites me out to shoot it when it’s done and Speedhunters grants me the chance to share it over again with you here.
To finish this I leave you with a video (via Clipping Point Media) of Brad drifting the automobile at a recent TOPP Drift event here in Ontario every week before this shoot. , just in case you thought this was only a show automobile.
